Introduction

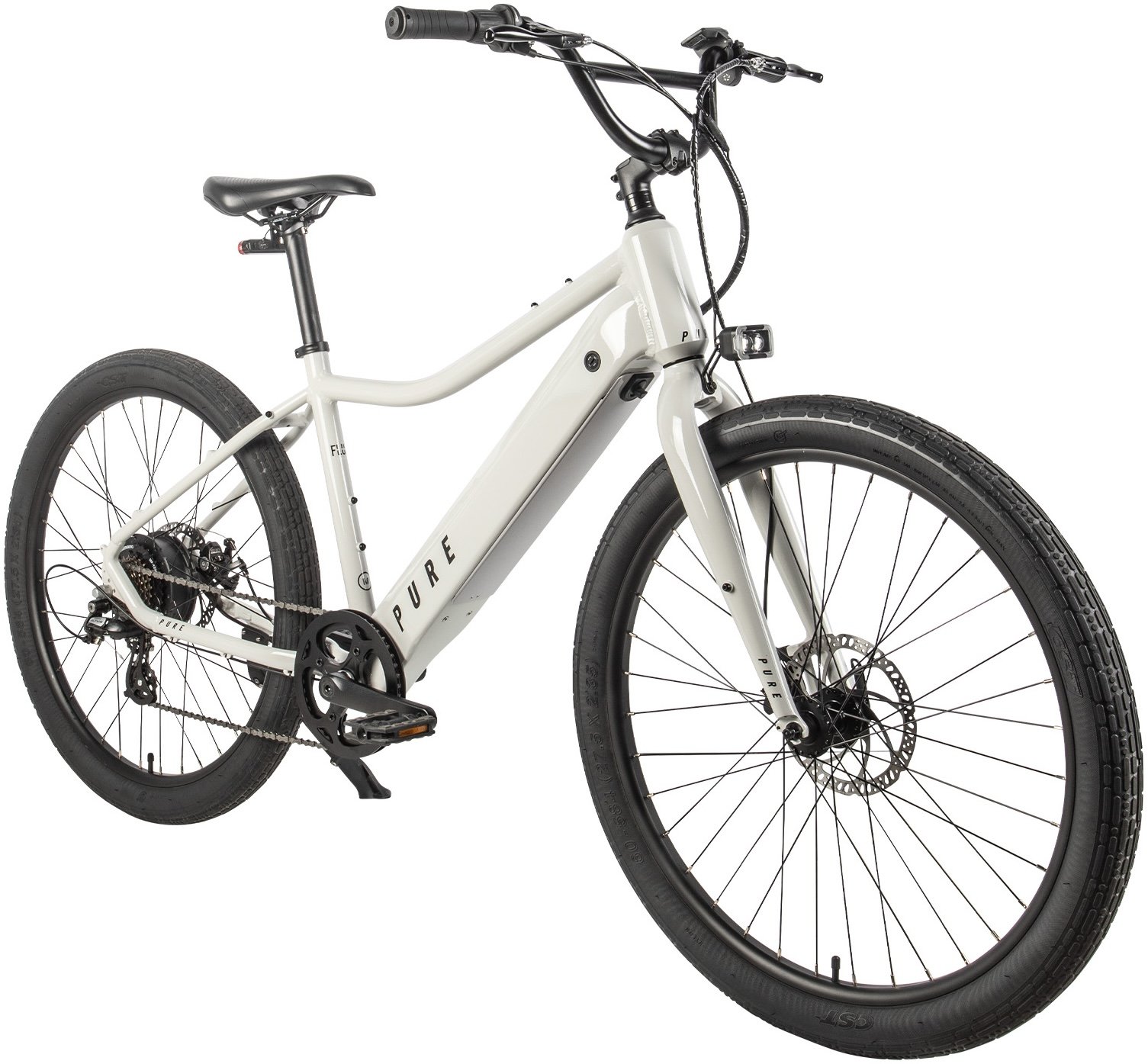

Congratulations on your purchase of the Pure Cycles FLUX Electric Bicycle! You’ve just made an investment in a fun, efficient, and eco-friendly mode of transportation that combines practicality with a sense of adventure. Whether your goal is to simplify your daily commute, reduce your carbon footprint, or simply enjoy the outdoors on a leisurely ride, the FLUX is designed with your needs in mind.

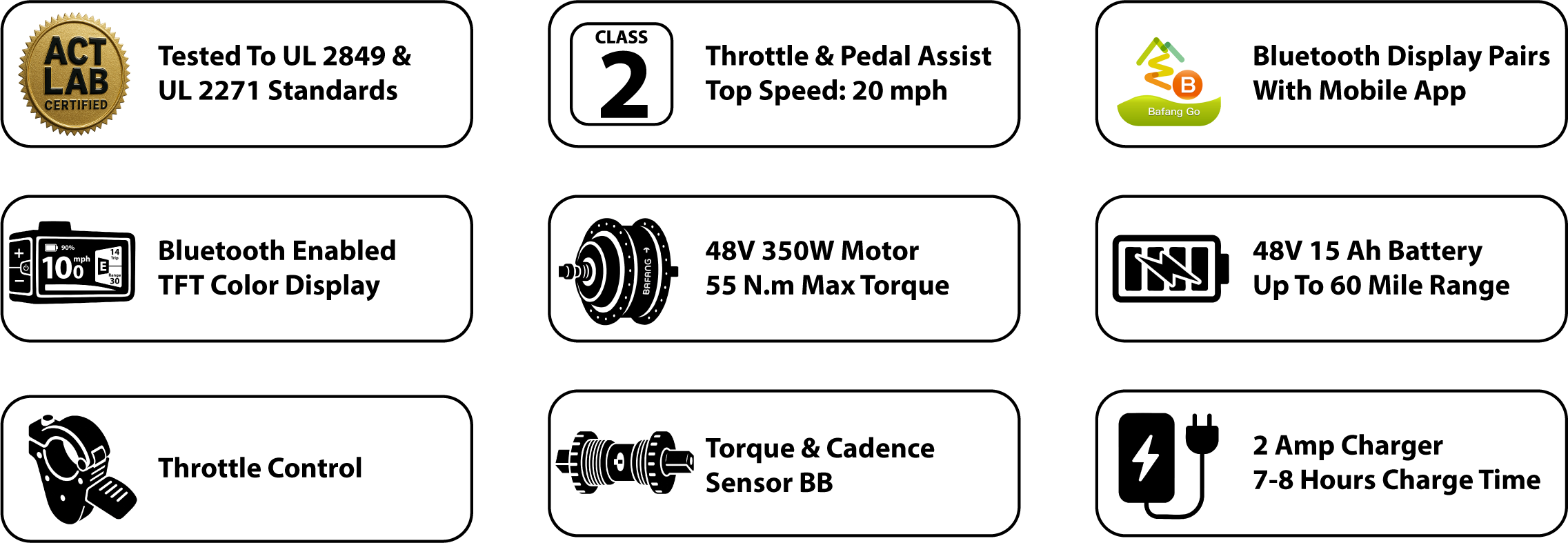

Tested to UL 2849 and UL 2271 standards, the FLUX is a reliable, rider-focused solution for everyday electric mobility.

NOTICE:  This guide provides a basic overview and is not a substitute for the official manuals included with the Pure Cycles FLUX E-Bike. Please be sure to read and fully understand the information provided in the following manuals before use.

Before Your First Ride

To ensure you have the best experience, follow these steps before your first ride:

   1.    Assembly:  If you purchased your new bicycle from a bike shop, it comes fully assembled and ready to ride.  If your new bike came unassembled in the box, we highly recommend you seek the services of a trained mechanic at your local bike shop to ensure your new e-bike is assembled correctly and ready to ride.

    2.    Charge Your Battery:  Use the supplied charger to fully charge the battery before your first ride. A full charge typically takes around 7-8 hours.

    3.    Safety Check: Before your first ride and regularly before each subsequent ride, conduct the safety checks detailed below and any other safety verifications detailed in the manuals to guarantee the bicycle's safety for riding.  Ignoring this warning could lead to severe personal injury.

Ensure all fasteners, including nuts, bolts, and screws, are appropriately tightened for the seatpost, stem, and handlebar. Check their tightness by securing the bike between your legs and attempting to twist, push, and pull the handlebar and saddle. If any component moves, realign it, increase bolt tension, and repeat until there is no movement.

Inspect tires and wheels to ensure they spin freely without any wobbling. Wheels should be centered within the frame and fork. If there’s any wobbling or misalignment, and you are uncertain about the cause, seek assistance from a Pure Cycles Retailer or other reputable bike shop.

    4.    Adjust Your Saddle: Set the saddle height for comfortable pedaling. With the pedal at its lowest position, your leg should have a slight bend at the knee. Adjust the saddle fore and aft to ensure proper reach to the handlebars, and check the tilt to maintain a level or slightly angled position for optimal comfort and support.

    5.    Check Your Handlebar Position:  Ensure the handlebars are properly aligned and adjusted to a comfortable height and angle for optimal control and comfort.

    6.    Check Tire Pressure:  Proper tire pressure ensures a smooth and safe ride. Refer to the tire sidewall for the recommended PSI (pounds per square inch) and inflate as necessary.

    7.    Wear a Helmet: Always wear a certified helmet to protect yourself, and review local laws for any additional required safety equipment.

    8.    Use lights at night: For your safety, always use lights at night and review local laws for specific lighting requirements.

Refer to the FLUX Owners Manual and Assembly Guide for complete details.

Powering On Your E-Bike

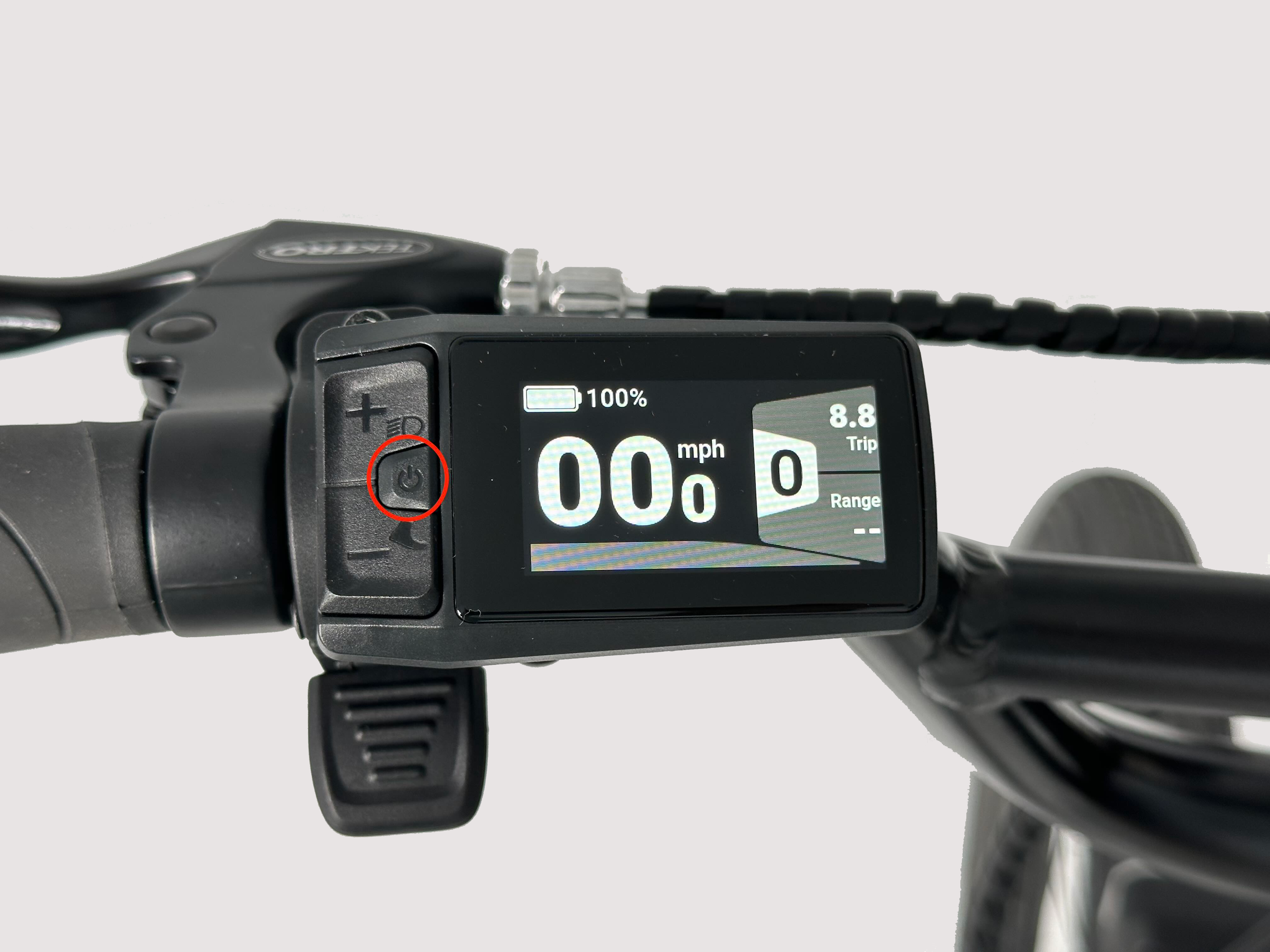

To turn on your FLUX e-bike, Press the (⏻) Power button on the handlebar-mounted display for at least 2 seconds until the display lights up. The display will default to the main screen, which shows the Battery Level, Current Speed, Power Assist Mode, Trip Distance, and Estimated Range.

Note: When your e-bike is powered on, the throttle remains disabled until you switch the Power Assist System (PAS) mode from Off, Eco, Tour, Sport, Sport +, or Boost mode.

Using the Display

The display on your FLUX e-bike serves as a central hub of information and control, enhancing your riding experience by providing key data and allowing you to adjust various settings.

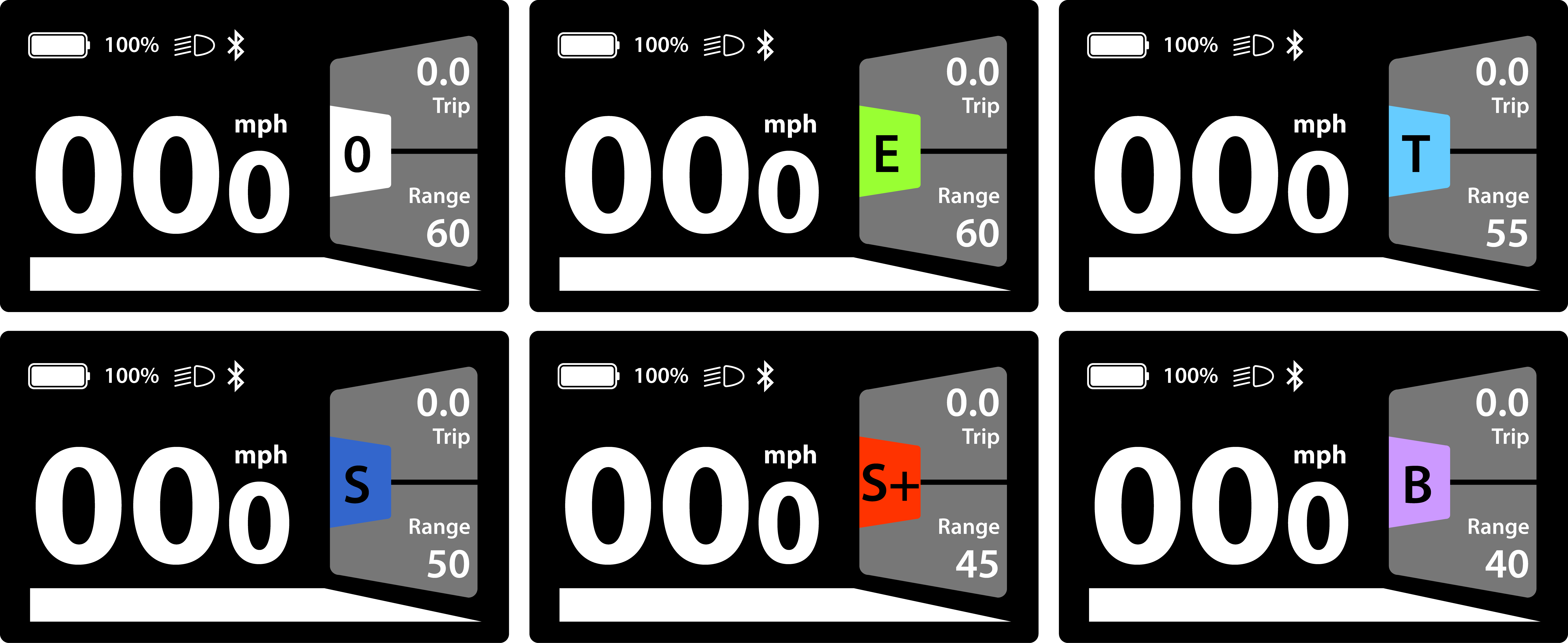

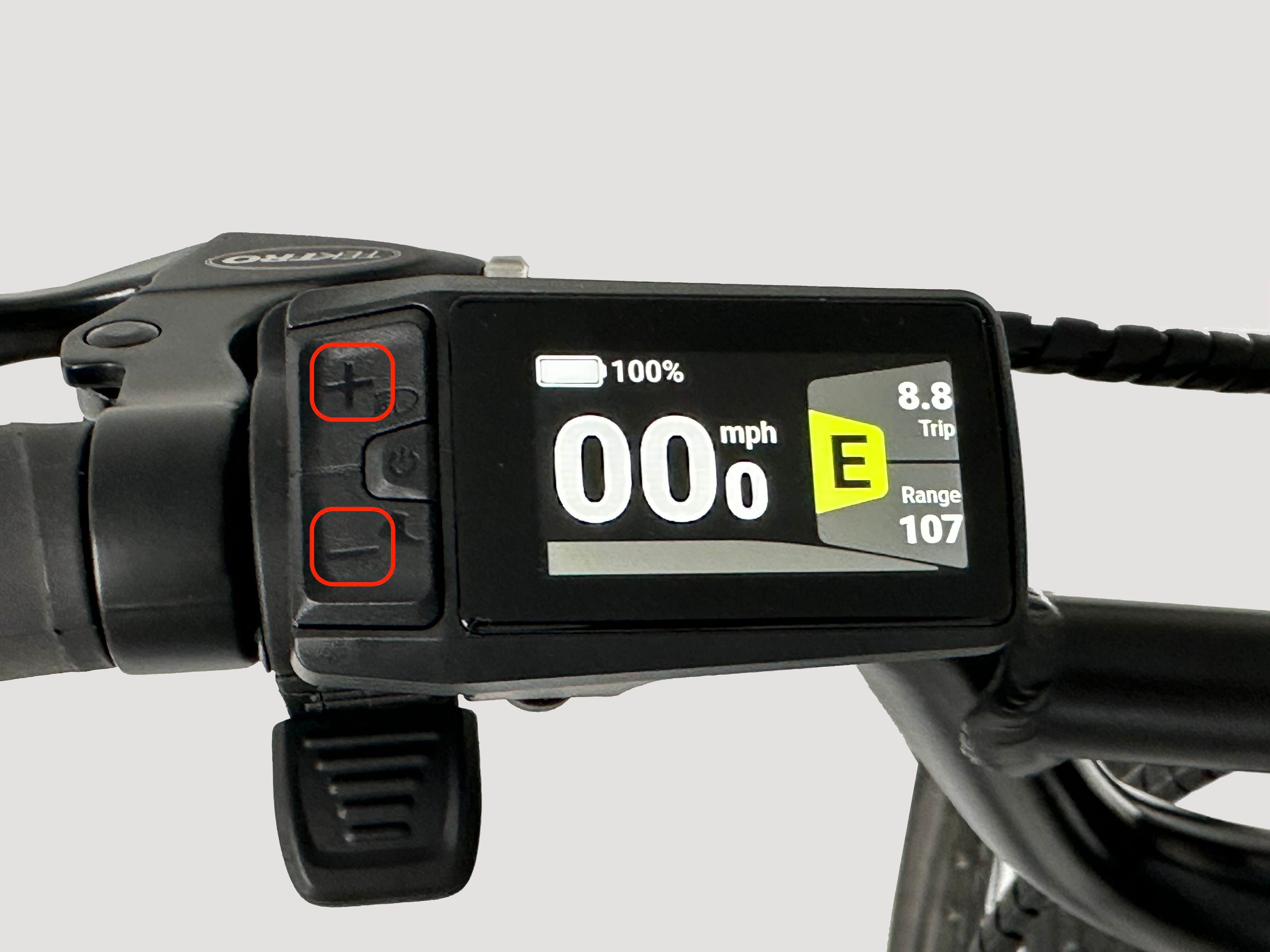

 Adjust the Power Assist System (PAS) Levels:  Choose from O (no assist) to Boost mode for maximum assistance. Use the (+) Plus and (-) Minus buttons to adjust between modes.

• (O) Off
• (E) Eco Mode
• (T) Touring Mode
• (S) Sport Mode
• (S+) Sport Plus Mode
• (B) Boost Mode

Note: The Power Assist System (PAS) responds directly to your pedaling effort. The bike’s torque sensor, located in the bottom bracket, measures the force you apply while pedaling and automatically adjusts the motor’s assistance to match your input, providing a smooth and efficient ride.

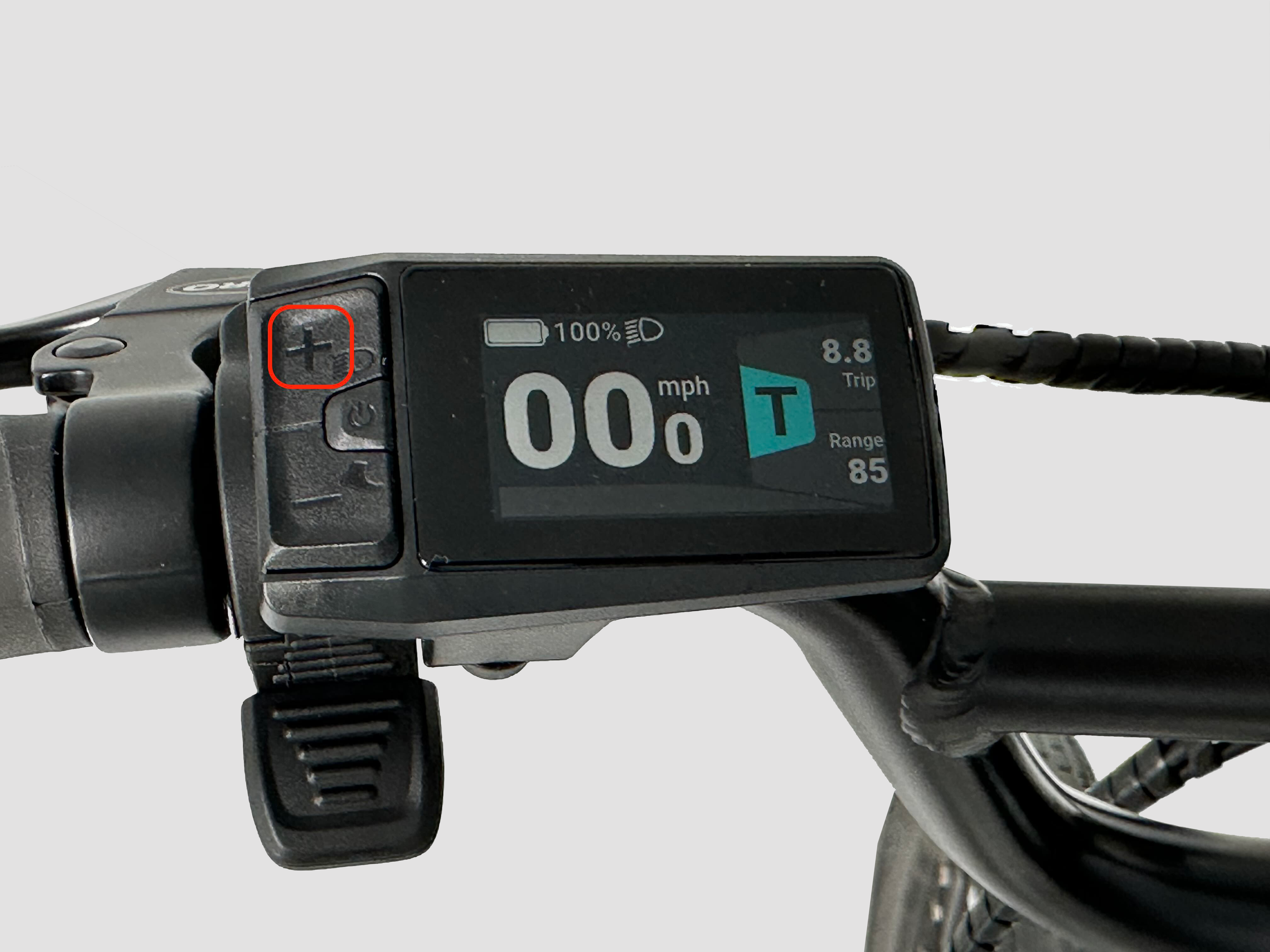

Turning Lights On/Off:  Press and hold the (+) Plus button for at least 2 seconds to turn the lights on or off.

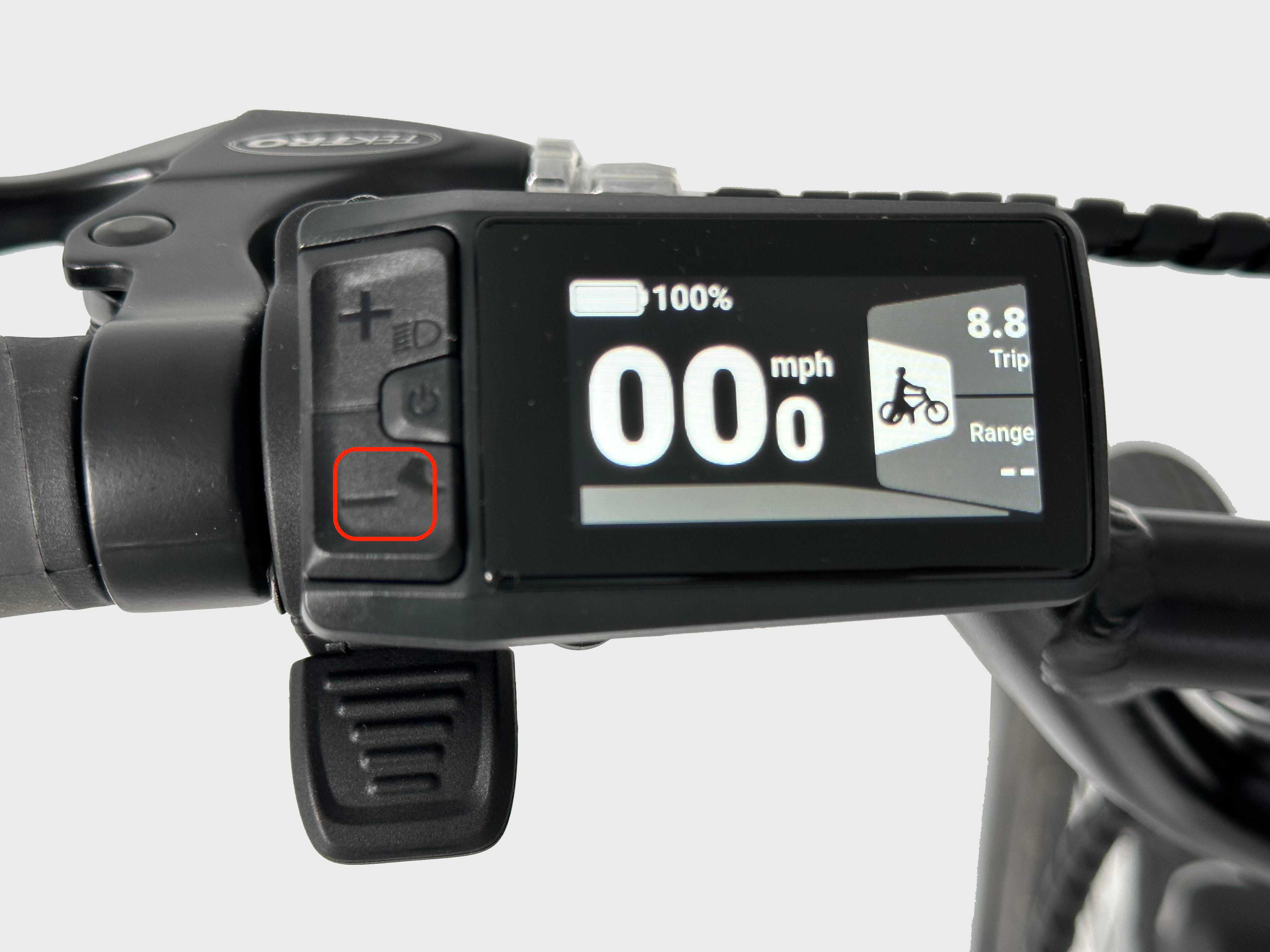

Using Walk Assist Mode:  Set the pedal assist level to “Walk Mode” using the (-) Minus Button, then press and hold the (-) Minus button to engage Walk Assist. The bike will move at walking speed as long as you continue pressing the (-) Minus button.

Navigating the Display Screens:  Cycle through the (4) four different screens by briefly pressing the (⏻) Power button.

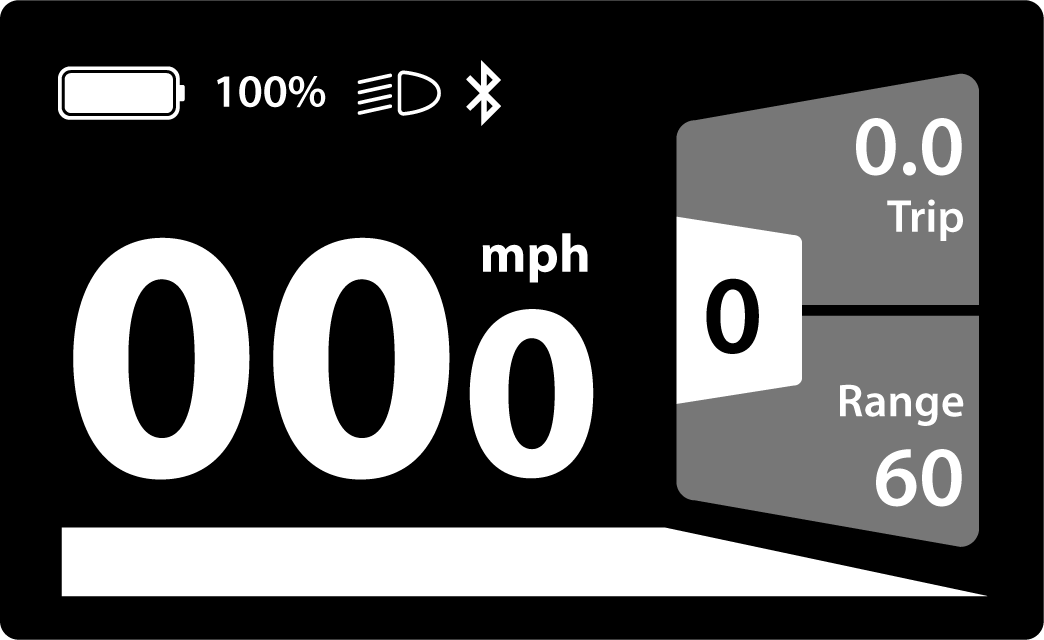

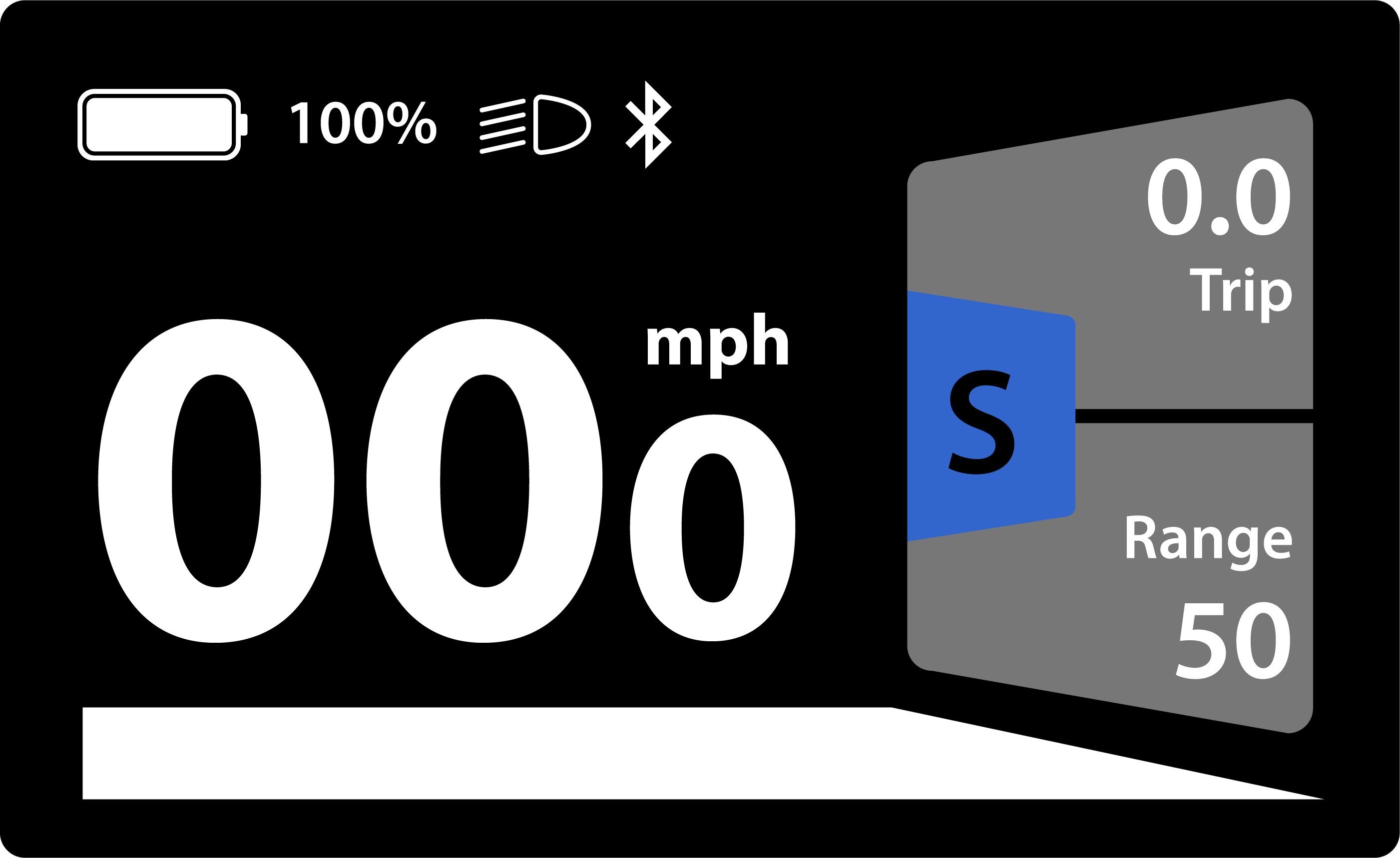

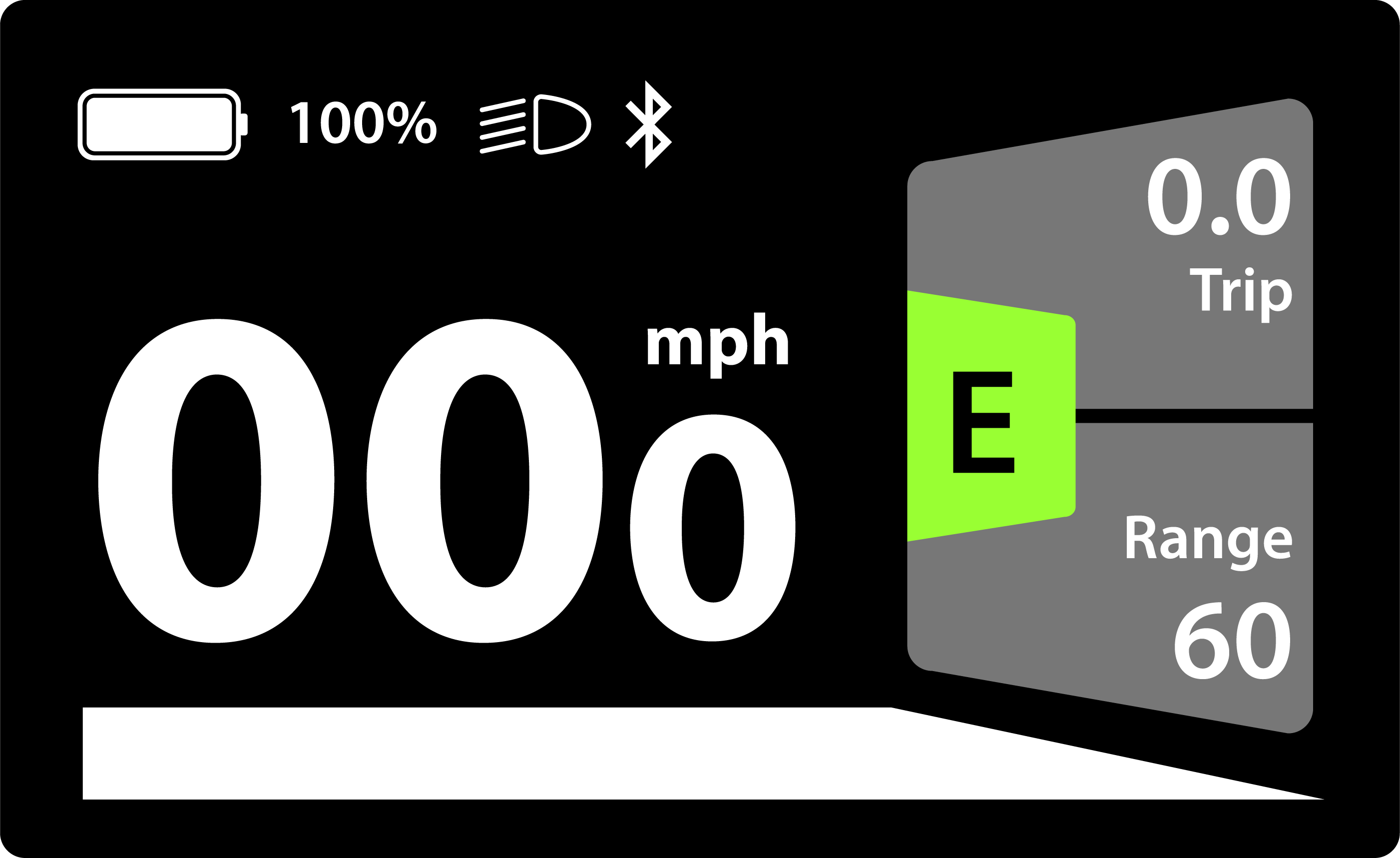

1.    Main Display:  Battery Level, Current Speed, Current Power Assist Level /Mode (O, Eco, Touring, Sport, Sport +, Boost), Trip Distance, and Estimated Range

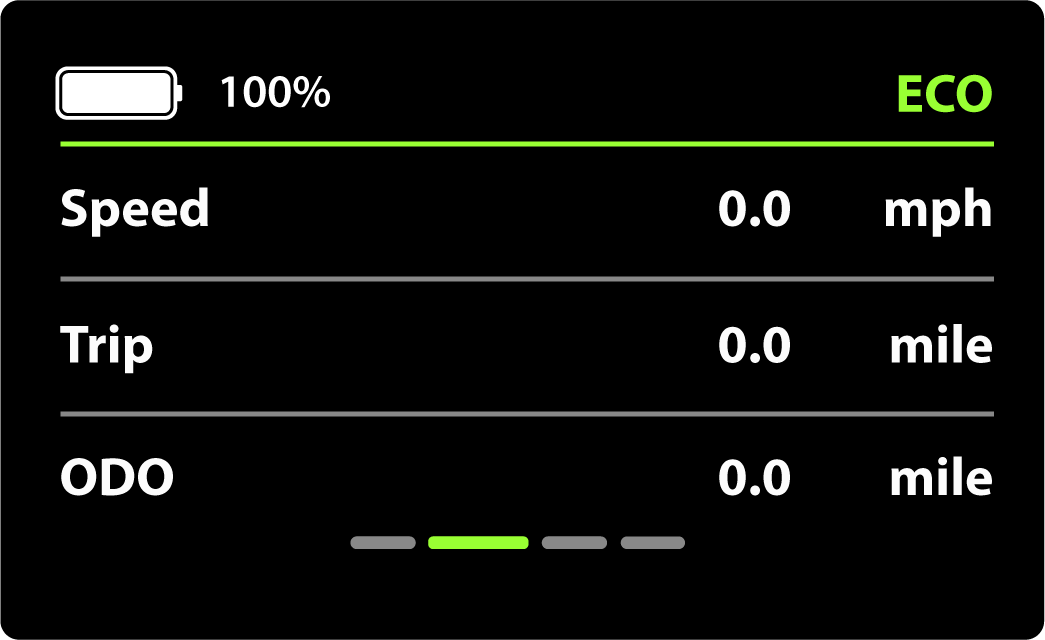

2.    Screen 2:  Battery Level, Current PAS Mode, Current Speed, Trip Distance, and Odometer

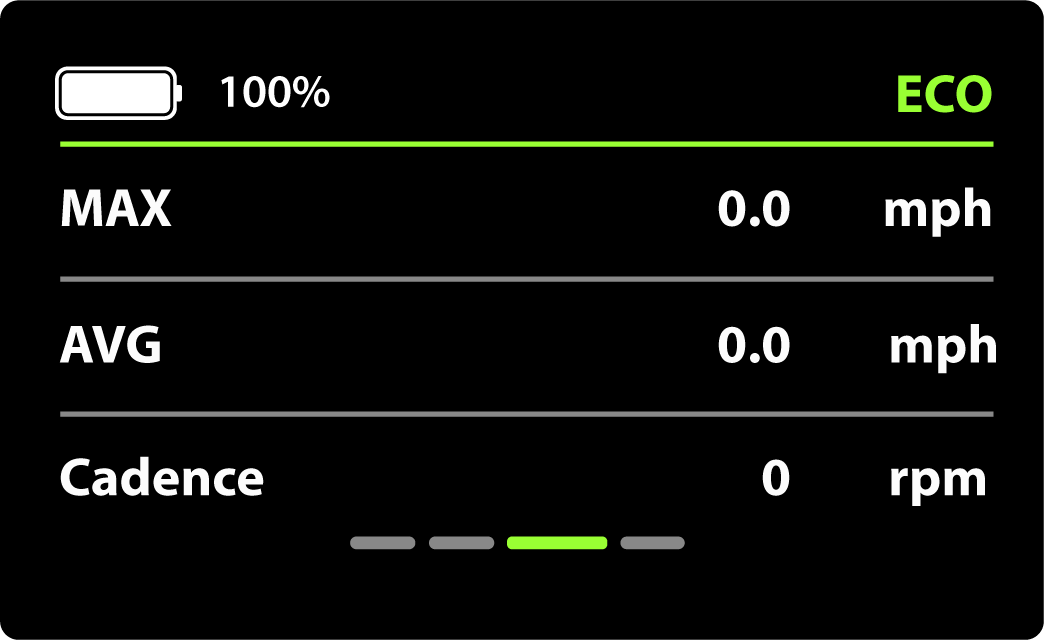

3.    Screen 3:  Battery Level, Current PAS Mode, Max Speed, Average Speed, & Pedal Cadence.

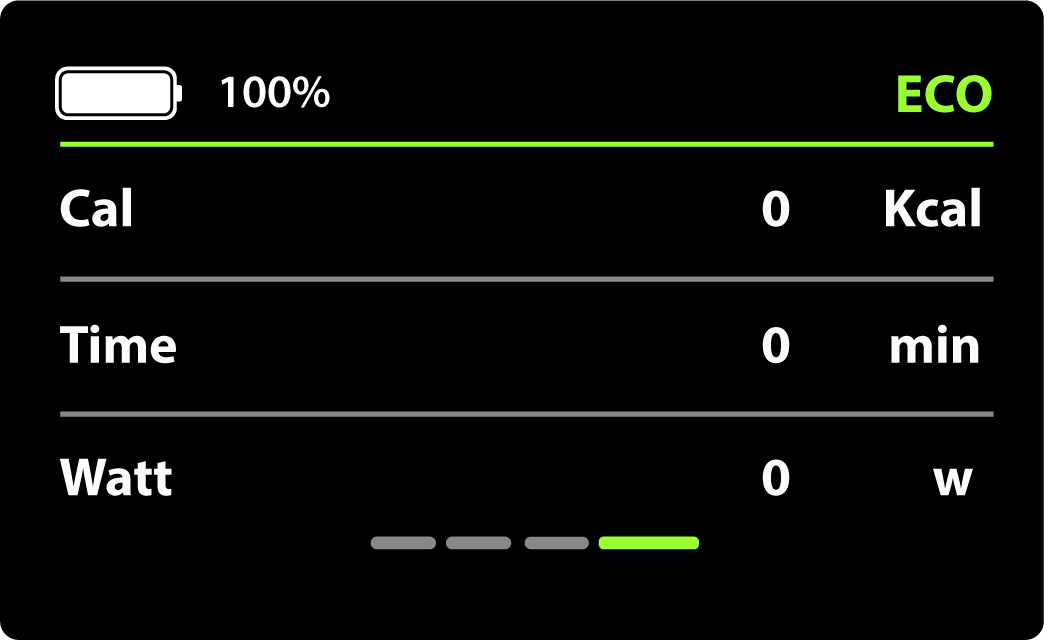

4.    Screen 4:  Battery Level, Calories Burned, Ride Time, & Power Output (Watts)

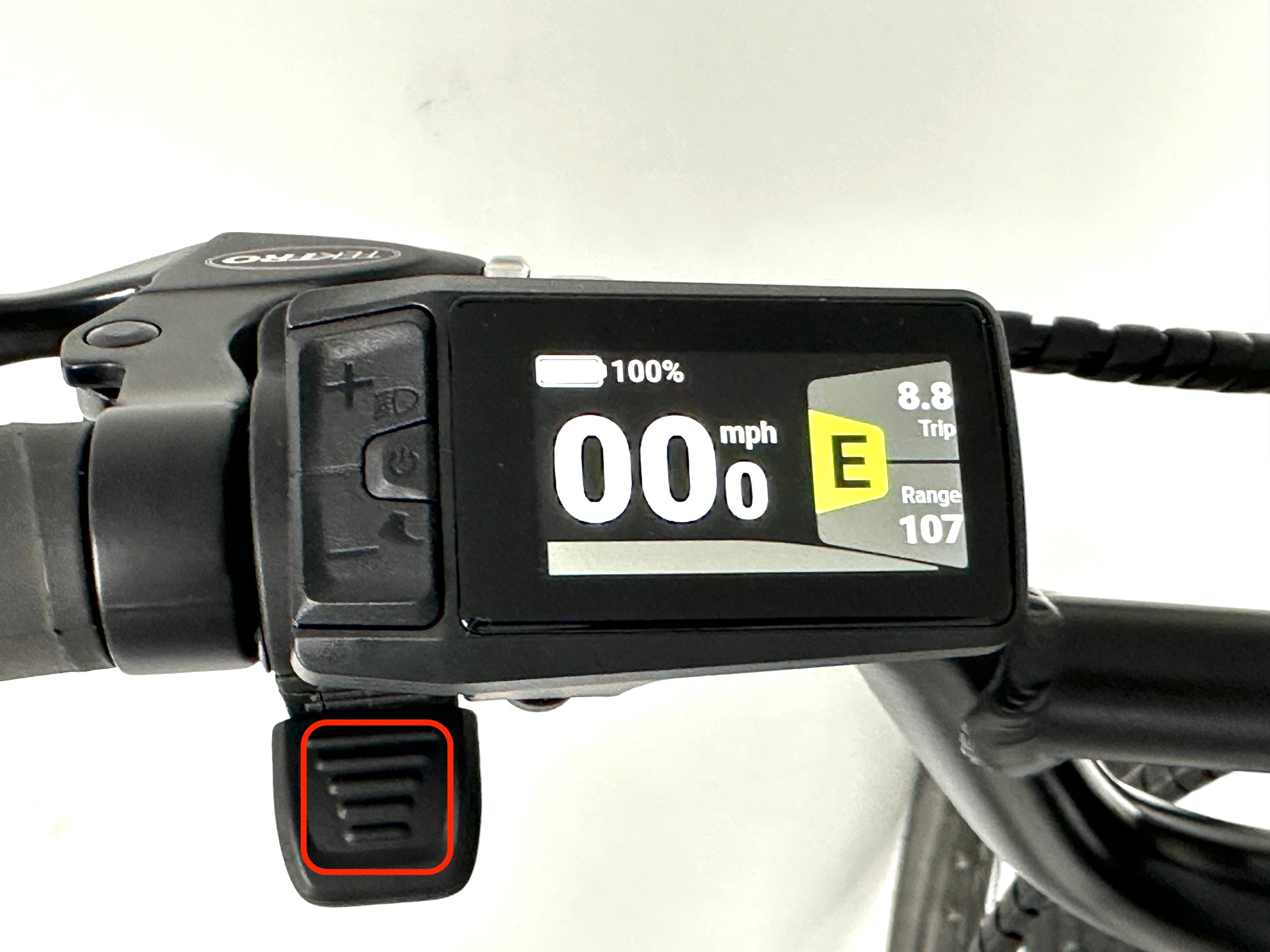

Using the Throttle

 The FLUX has a throttle, allowing you to accelerate without pedaling. Gently press the throttle to increase speed, but be cautious in high-traffic or pedestrian areas.

NOTE: Using the throttle bypasses the current PAS mode, allowing the bike to accelerate up to 20 MPH. Relying solely on the throttle reduces your e-bike’s range by draining the battery faster. For optimal range and battery life, use the throttle sparingly and combine it with pedaling.

Starting Your Ride

Adjust the Power-Assist Levels:   Use the (+) Plus and (-) Minus buttons to adjust between PAS Modes. Choose from (O) Off for no power assist to (B) Boost mode for maximum assistance.

The Power Assist System (PAS) responds to your pedaling. The bike’s torque sensor in the bottom bracket detects how hard you’re pedaling and adjusts the motor’s assistance accordingly.

If you're new to electric bikes, start in (E) Eco Mode and spend some time getting used to the Power-Assist System.

• Take it Slow at First: Practice in a safe area before venturing out onto busy roads or paths.
• Stay Visible: Wear bright clothing and use your lights when riding at night or in low-light conditions.
• Check Local Regulations: Laws regarding e-bike usage vary, so ensure you’re familiar with the rules in your area.

Understanding the 6 Power Assist System (PAS) Modes

Power Assist System (PAS) modes on an electric bicycle are designed to control how much assistance the motor provides while you’re pedaling. Each PAS mode offers varying levels of support to suit different terrains, riding styles, and energy needs. Here’s a breakdown of the purpose of each typical PAS mode:

1. O (Off) Mode:Purpose: In this mode, the motor is completely disengaged, and you ride the e-bike like a traditional bicycle. It’s useful when you want a full workout or conserve all of the battery for later use.

Best For: When the rider wants no motor assistance or to conserve battery power entirely.

2.    E (Eco) Mode:

Purpose: This mode provides minimal motor assistance, allowing you to rely more on your pedaling effort. It is ideal for flat terrain, leisurely rides, or conserving battery life over long distances.

Best For: Riders who want to extend their range and use the e-bike primarily for light exercise or casual rides.

3.    T (Tour) Mode:

Purpose: This mode offers moderate assistance, balancing pedal power, and motor assistance. It is perfect for riding in slightly hilly areas or for a consistent level of support without using too much battery.

Best For: Daily commuting, recreational rides, and mixed terrain where you need moderate help but still want to maintain a reasonable battery life.

4.    S (Sport) Mode:

Purpose: This mode provides higher levels of assistance, making it easier to climb hills or maintain higher speeds with less effort. This mode is helpful for covering ground faster or tackling more challenging terrain.

Best For: Hilly routes, quicker commutes, or when you want more assistance for a relaxed ride at higher speeds.

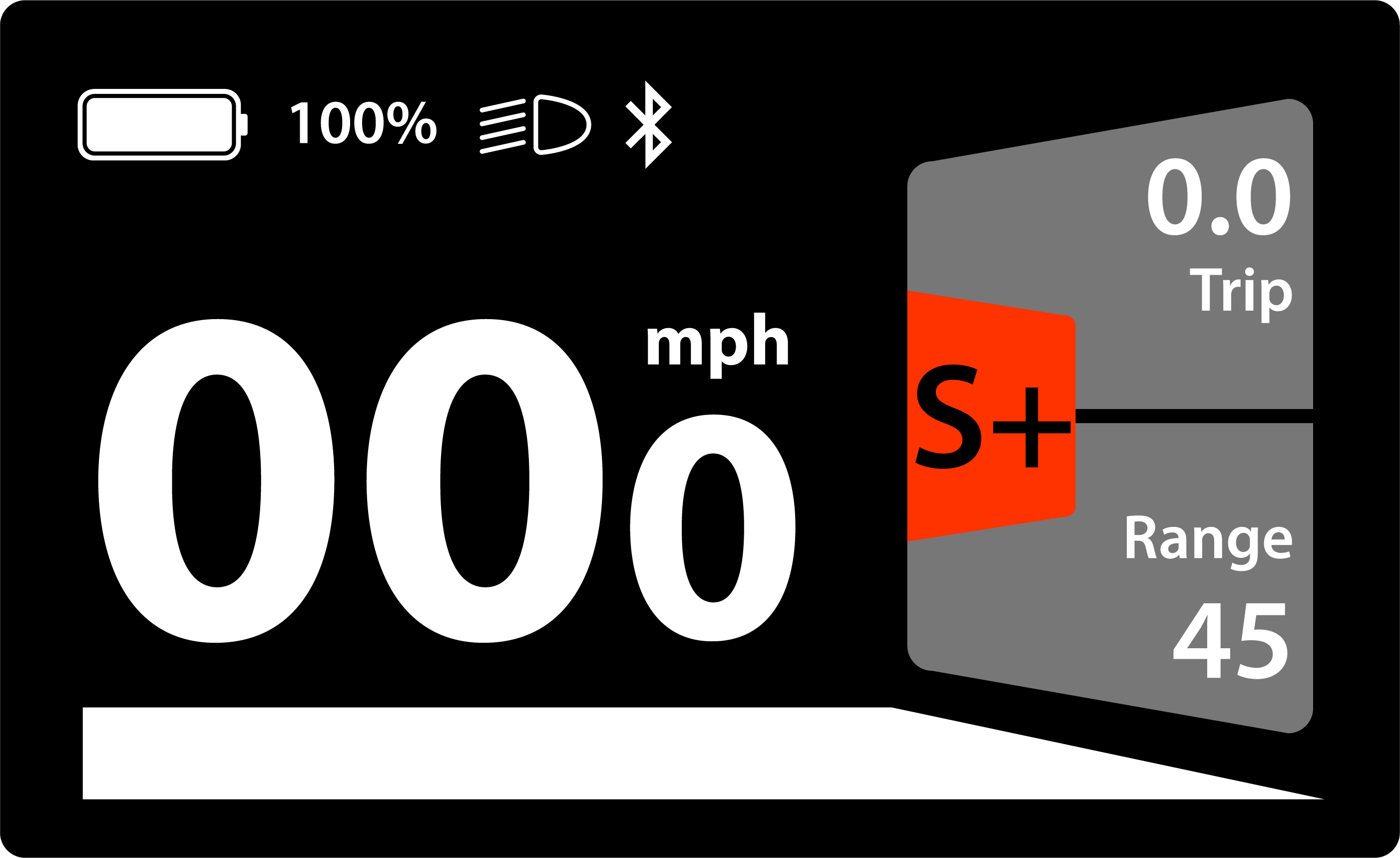

5.    S+ (Sport+)  Mode:

Purpose: This mode provides higher levels of assistance, making it easier to climb hills or maintain higher speeds with less effort. This mode is helpful for covering ground faster or tackling more challenging terrain.

Best For: Hilly routes, quicker commutes, or when you want more assistance for a relaxed ride at higher speeds.

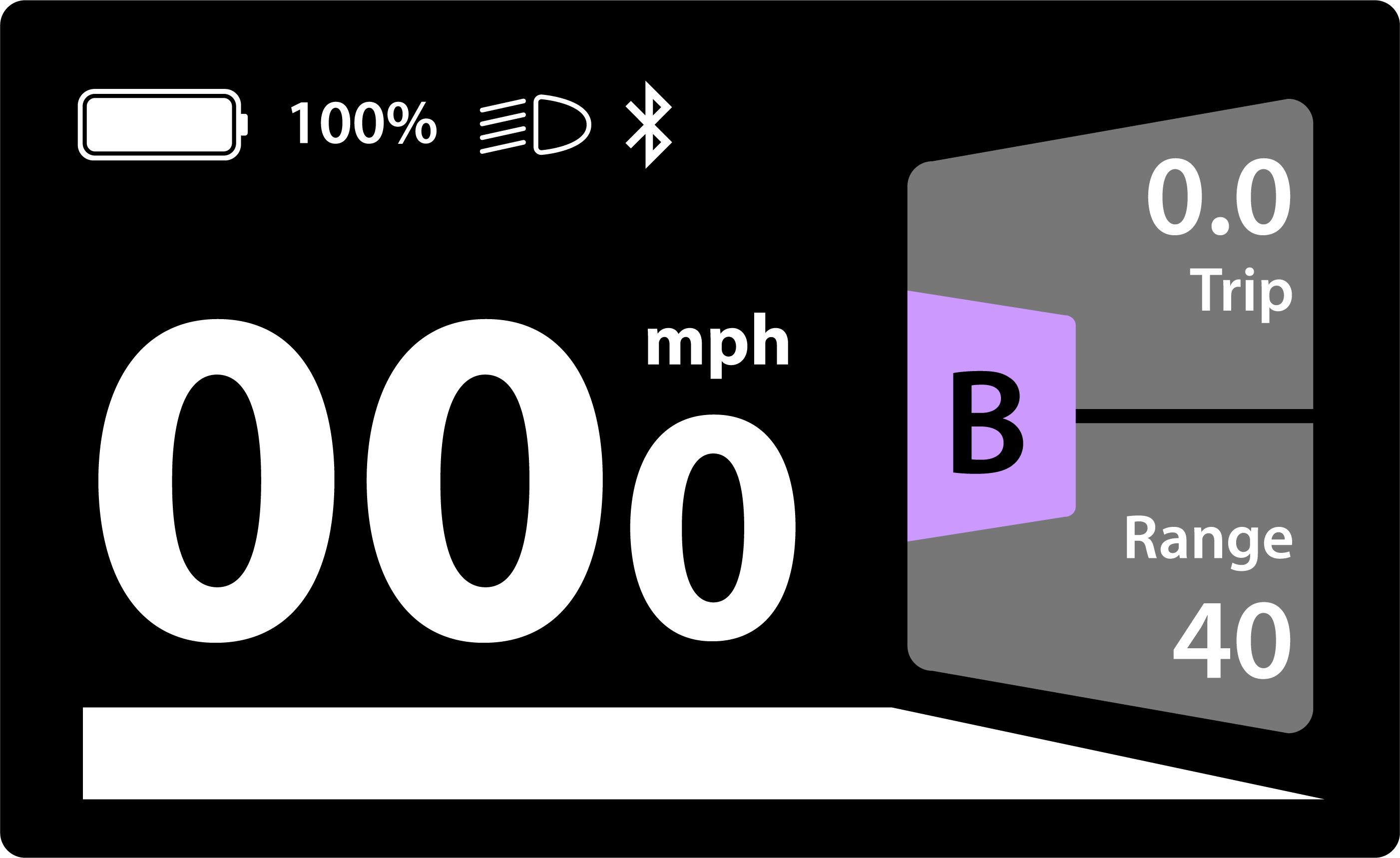

6.    (B) Boost Mode:

Purpose: Delivers maximum motor assistance with minimal pedaling effort required. It’s ideal for steep inclines, difficult terrain, or when you’re in a hurry and want to get to your destination quickly.

Best For: Very steep hills, strong headwinds, or when you need the most power output from your e-bike for tough conditions.

Stopping

The FLUX is equipped with disc brakes, which offer significantly more stopping power than traditional brakes. It’s recommended to practice using them in a safe area, as their stronger braking force requires getting used to before venturing onto busy roads or paths.

Note: For optimal stopping power and control, the brakes on your FLUX E-bike are designed to work best when used together—both front and rear.

Range

The estimated range of your electric bicycle can vary depending on several factors such as rider weight, terrain, riding style, and assist level. Based on the battery capacity, here is an approximate range.

• Under optimal conditions (low assist, flat terrain): Up to 72 miles
• Under more demanding conditions (high assist, hills): Around 36 miles

Note:  Your actual range will vary based on riding conditions and how you use motor assist.

Important: Battery performance will naturally decline over time as the battery ages.

Limitations

• Rider Weight Limit:  The maximum rider weight limit for this bicycle is 250 Lbs
• Cargo Weight Limit: The maximum recommended cargo limit is 25 LBS

Battery – Removal

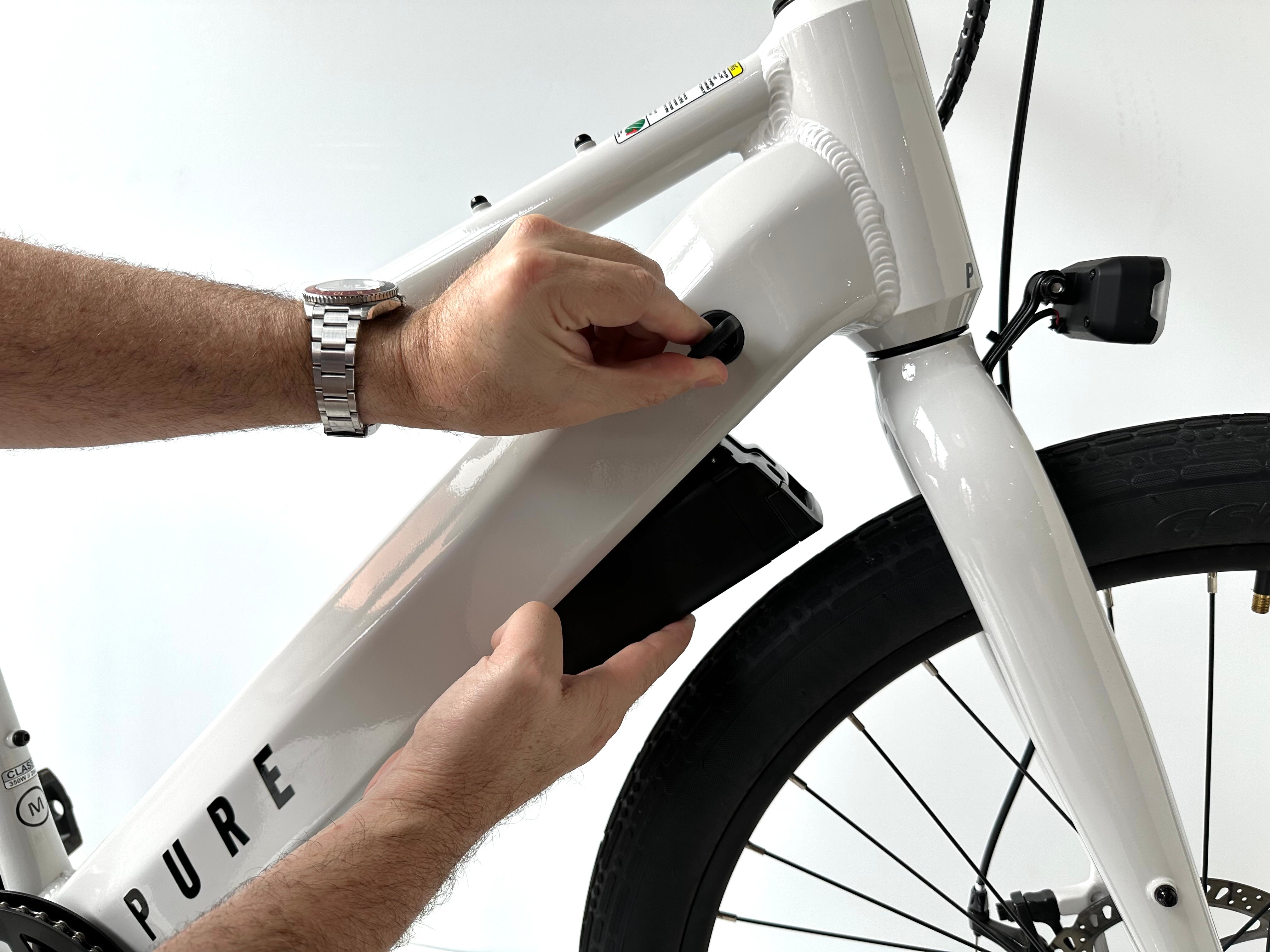

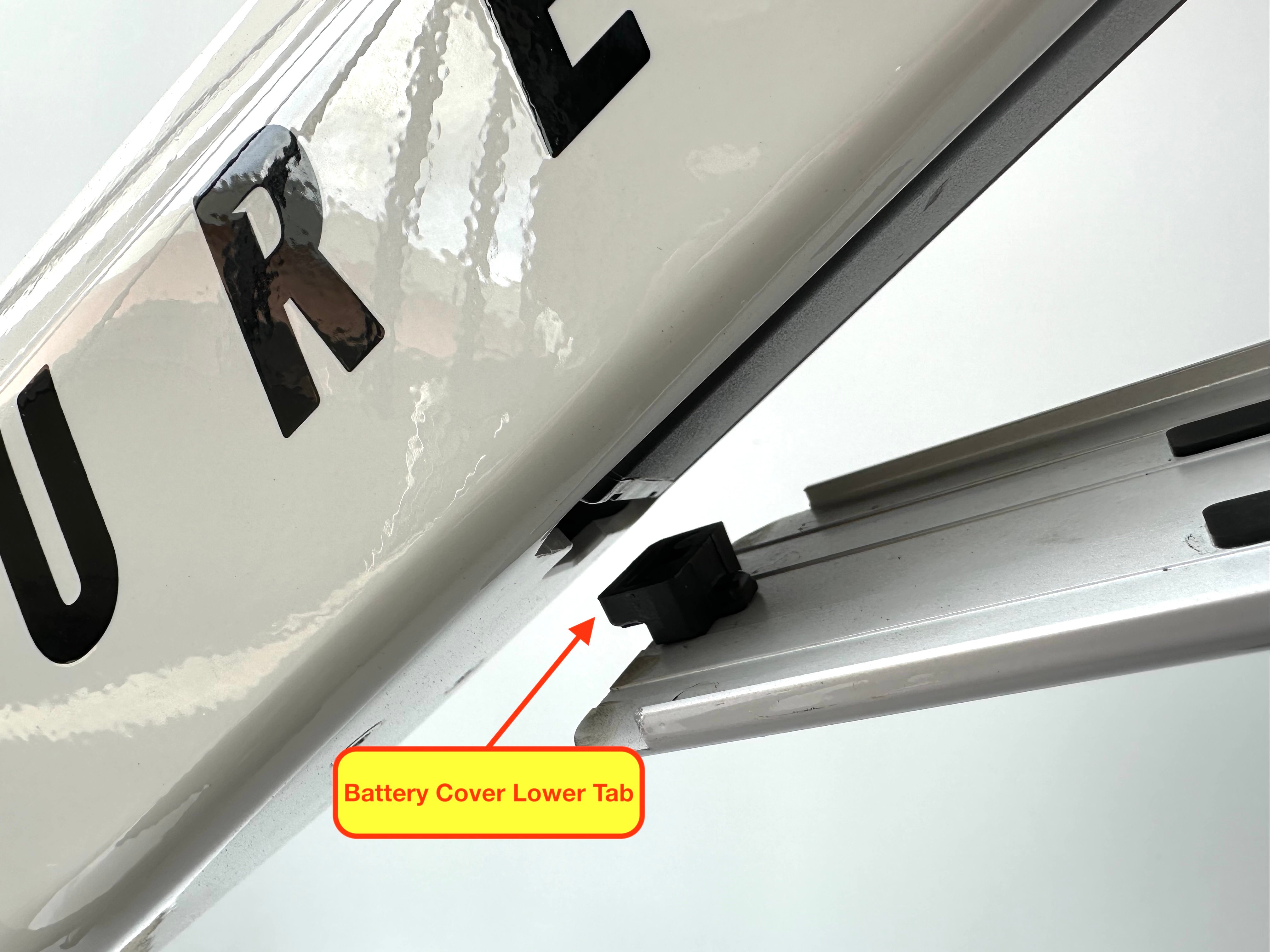

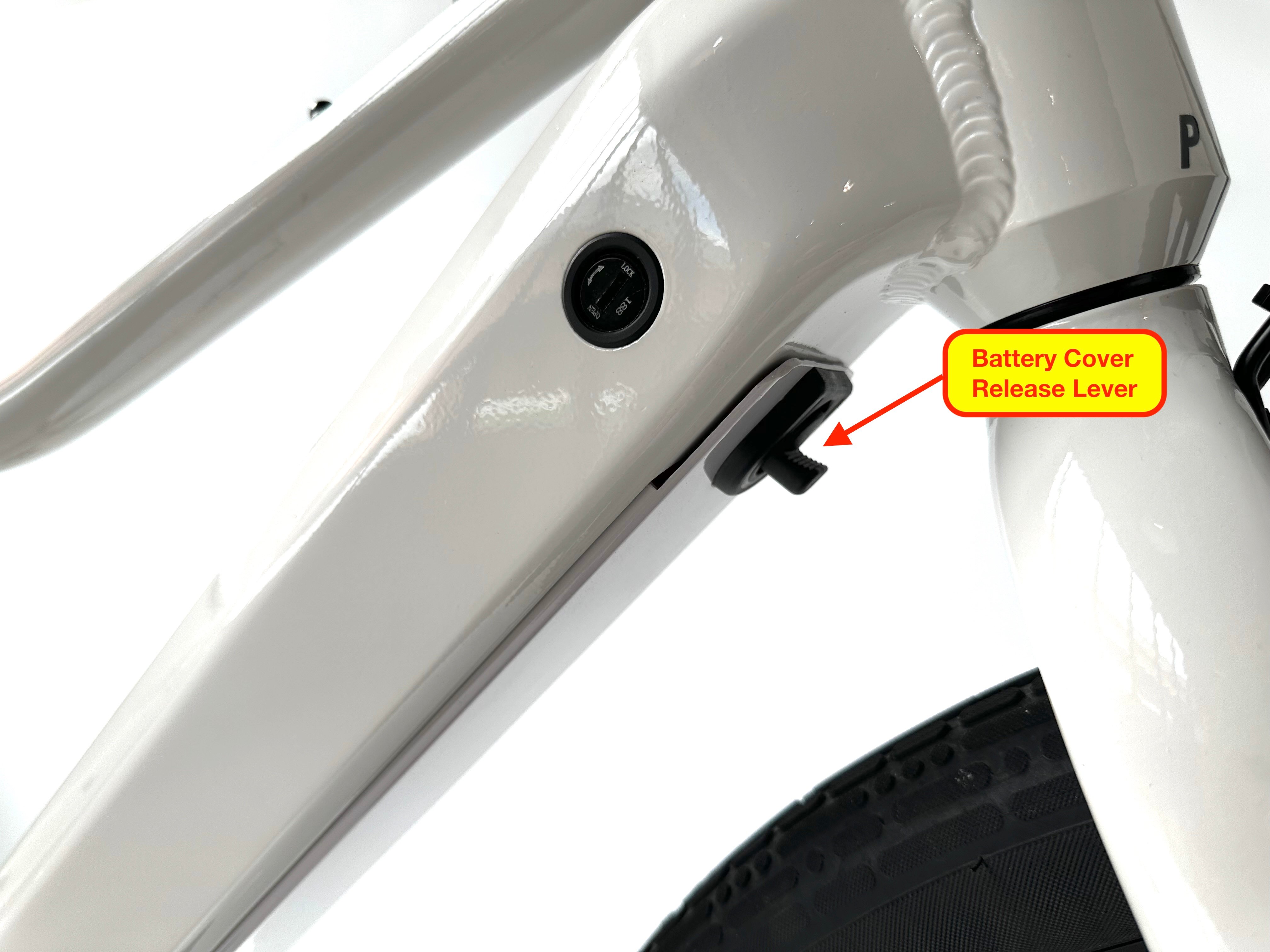

1.    Remove the outer cover by gently pushing the release lever downward.  Once the cover is released at the top, tilt the cover down slightly and then pull upward somewhat until the bottom tab of the cover clears the frame.

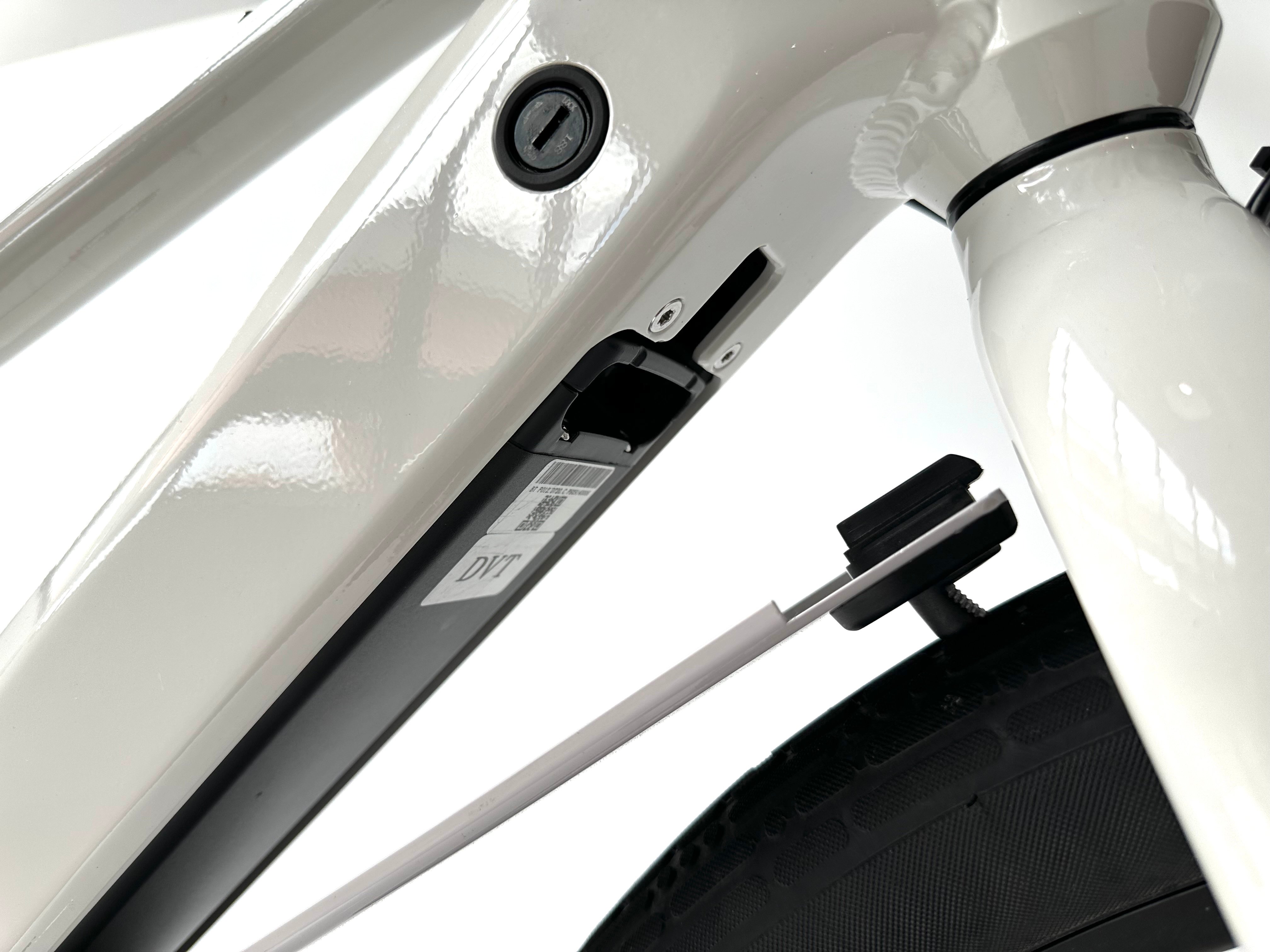

2.    Use the provided key to remove the battery: Support the battery near the top with one hand while turning the key counterclockwise with your other hand to ensure the battery doesn't drop out unexpectedly. Once the battery is released at the top, you can now safely remove it from the downtube in the same way you removed the cover.

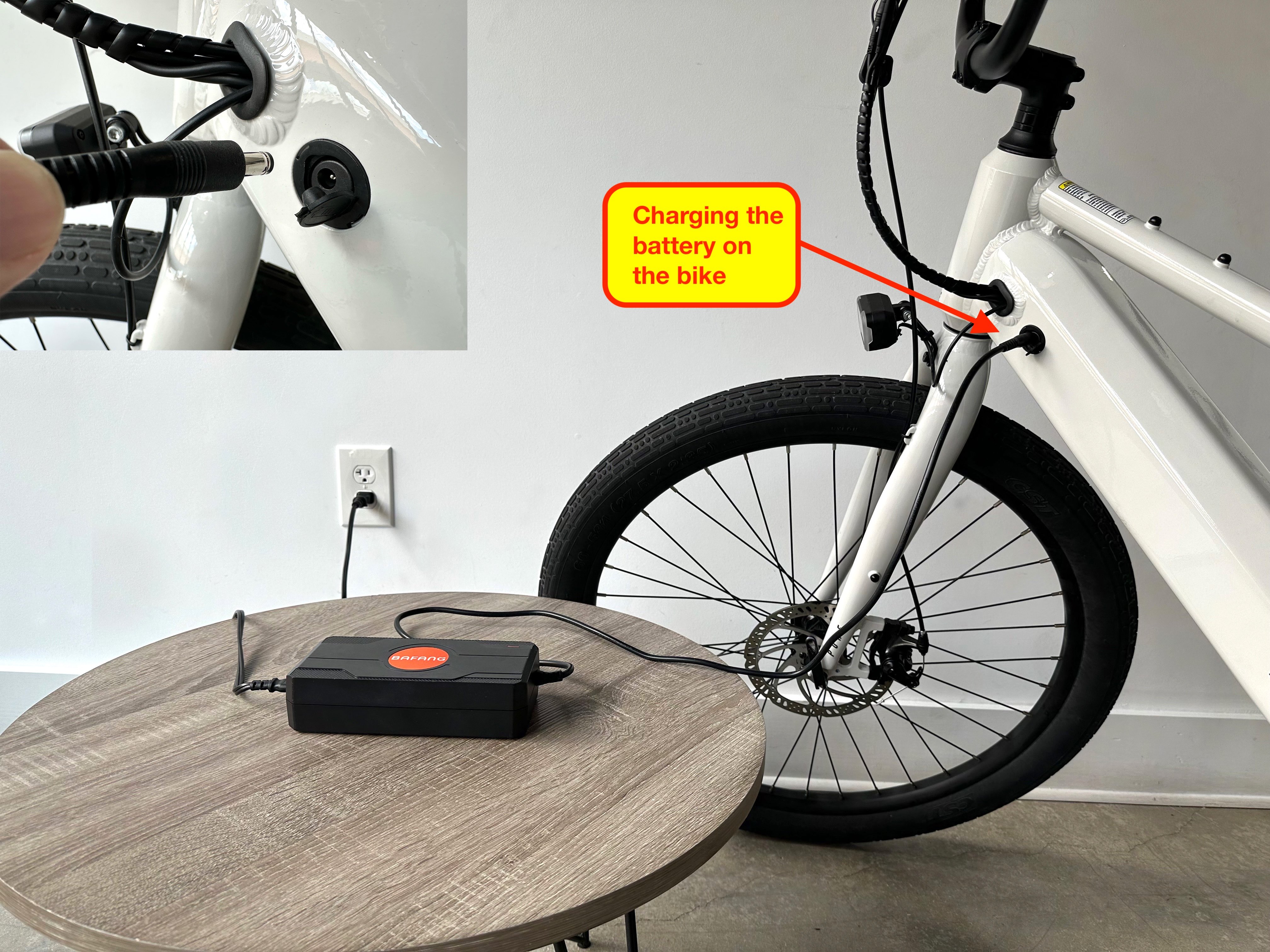

Battery – Charging

1.    Use the Correct Charger: Always use the charger that comes with your e-bike.  Using an incorrect charger will void the warranty and can damage the battery or pose safety risks.

2.    Charge Time:  Your e-bike has a 48V x 15Ah battery, and the supplied charger operates at two amps per hour. The estimated charge time is 7 hours and 30 minutes.

3.    Charge at Room Temperature: Charge the battery in a dry, cool place in close proximity to a working smoke detector, avoiding extreme temperatures. Charging at temperatures outside the range of 40  to 70 °F can harm battery performance and longevity.

4.    Monitor Charging:  Do not charge the battery unattended or overnight

5.    Don't Overcharge: Most modern e-bike batteries and chargers are designed to prevent overcharging, but it's still a good idea to unplug the charger once it's fully charged to avoid any potential issues.

6.    Partial Charges Are Okay: Lithium-ion batteries, common in e-bikes, do not suffer from the memory effect seen in older battery types. You can charge them even when they're not fully discharged without affecting their lifespan.

7.    Avoid Depleting the Battery Completely: Try to recharge your battery before it's completely empty. It is preferable to keep the charge level between 20 and 80%.  Deep discharges can stress the battery and reduce its lifespan.

Battery – Sleep Mode

Sleep mode is a power-saving feature designed to preserve battery life when the bike is not used for an extended period. When the battery enters sleep mode, it shuts down most of its functions to minimize energy consumption. This is particularly useful for preventing the battery from slowly discharging while the bike is stored or not in use for days or weeks.

• If the charge level is  40 - 100%, the battery will go into sleep mode if not used for 30 days.
• If the charge level is 10 - 39%, the battery will go into sleep mode if not used for 14 days.
• If the charge level is 1 - 9%, the battery will go into sleep mode if not used for 48 hours.
• If the charge level is below 1%, the battery will go into sleep mode within 10 minutes.

Important:  To wake up your battery from sleep mode, connect it to the charger.

Battery – Storage

If you plan not to use your e-bike for an extended period, like during the winter, it is best to remove the battery pack and store it according to the guidelines below.

1.  Optimal Charge Level for Storage: If you won't be using your e-bike for an extended period, store the battery at a 30% to 60% charge level. This range is generally considered ideal for lithium-ion batteries.

2.  Temperature Matters: Store the battery in a cool, dry place, away from direct sunlight or extreme temperatures. Ideal storage temperatures are between 40 to 70 °F.

3.  Recharge Periodically: If you plan to store the battery for a long time, recharge it to the recommended storage level every 3 to 4 months to compensate for the natural discharge that occurs over time.

4.  Avoid Humidity and Water Exposure: Keep the battery in a dry environment to prevent corrosion or damage to its components.

5.  Physical Protection: Store the battery in a way that avoids physical damage, including punctures or impacts.

Battery – Transportation

When transporting your battery for a more extended period, such as taking it on holiday, you should discharge it to approximately 30% and only fully charge it again at the final destination.

Make sure to handle your battery with care and avoid any impacts and hard shocks during transport.

Final Words

Now that you’re familiar with your new FLUX Electric Bicycle, you’re ready to ride! Take advantage of this fun, efficient, and eco-friendly way to travel, and enjoy your journey. Happy riding!
